Sand vs Anthracite Filter Media: Selection, Specifications and Bulk Buying Guide
Sand vs anthracite filter media is an important choice for engineers, water treatment contractors and bulk procurement teams. Both help separate suspended particles from water, but their density, particle characteristics and placement in a filtration bed are different. Buying on price alone can leave a treatment plant with poor backwash behaviour, excessive pressure loss or a media bed that does not match the vessel design.
This guide covers the role of silica sand, anthracite and support gravel, when a dual-media filter may be useful, and how to specify a bulk order in India. Bed design and water-quality performance must always be confirmed by a qualified water-treatment engineer.
What Is Silica Sand Filter Media?
Graded silica sand is widely used in gravity and pressure filters. Water passes through a designed bed of granular particles while suspended solids are retained within the media. Effective filtration depends on the incoming water quality, filter loading, grain-size distribution, pretreatment and cleaning cycle—not simply on having a layer of sand.
Why grading matters
The effective size (often called D10) is the particle size at which 10% of a tested sample by mass is finer. The uniformity coefficient (D60/D10) describes the spread of particle sizes. These values influence the filter's hydraulics, particle capture and cleaning behaviour. Specify the test method and permitted limits rather than just asking for “fine sand.”
Where sand filters are used
Sand filtration can be part of industrial process-water treatment, wastewater tertiary filtration and pretreatment ahead of membrane systems, as well as engineered drinking-water processes. Not every filter-media grade is suitable for potable-water use: request application-specific conformity evidence when required.
What Is Anthracite Filter Media?
Anthracite is a hard carbonaceous granular material used as filtration media. Compared with common silica sand, it is generally less dense and is often supplied with relatively coarse grains. In a properly designed dual-media filter, these properties can allow anthracite to remain above denser sand after backwashing.
What does anthracite do in a dual-media filter?
A relatively coarse upper layer can retain solids throughout more of the upper bed instead of concentrating capture at the very surface. Depending on water quality and filter design, this arrangement may support longer filter runs before backwashing. It is not a guaranteed improvement for every plant.
Is anthracite the same as activated carbon?
No. Anthracite used as filter media primarily provides physical filtration. Activated carbon is engineered for substantial adsorption and may be specified to remove particular organic compounds, taste or odour constituents. See BulkFineChem's granular vs powdered activated carbon guide for that distinct treatment function.
Sand vs Anthracite Filter Media: Key Differences
Use this comparison as a starting point for evaluating the two media, not as a replacement for the design schedule.
| Factor | Silica sand | Anthracite |
|---|---|---|
| Typical material | Silica-rich mineral granules | Hard carbonaceous granules |
| Relative density | Generally higher | Generally lower |
| Typical role | Primary single-medium bed or lower layer in dual-media design | Upper layer in many dual-media designs |
| Key specifications | Effective size, uniformity, cleanliness, silica content | Effective size, uniformity, density, abrasion resistance |
| Selection criterion | Filter design and particle-removal goal | Compatible graded dual-media design and backwash |
When Should a Plant Consider Dual-Media Filtration?
A dual-media filter typically uses anthracite above sand, with a carefully specified support system beneath. It may be worth evaluating where the plant's single-media filter suffers from short runs, surface loading or difficult solids distribution.
Layering and hydraulic design
The arrangement works because the media are selected for complementary grain sizes and densities. Correct bed depths, drainage design, filtration rate and freeboard are all important. Simply pouring anthracite on an existing sand filter without a design review is not a sound upgrade.
Backwash compatibility
Backwashing must expand and clean the layers without losing excessive media or causing undesirable mixing. Temperature, media density, grain size, backwash equipment and water quality affect the required cleaning conditions. Follow the filter supplier's design rather than copying a generic rate from another plant.
Evaluate real plant performance
Check filtrate turbidity or other quality measures, pressure loss, run length, backwash frequency and operating cost. A well-operated sand-only bed may outperform a poorly designed dual-media installation.
For wider water-treatment considerations, see BulkFineChem's bulk water-treatment chemical buying guide.
What Is the Purpose of Support Gravel?
Support gravel may be specified beneath the filtration media to maintain the bed and protect the underdrain. Graded layers often transition from finer material above to coarser material below, but the actual arrangement depends on the underdrain design. Some modern underdrain systems use alternative support arrangements; gravel should not be specified automatically without reviewing the vessel.
Check the complete bed schedule
Provide the supplier with the specified layer depths, grain-size ranges, vessel dimensions and underdrain type. A quotation for “sand, gravel and anthracite” without the quantities by layer is not a complete technical specification.
Key Specifications to Request Before Ordering
Procurement teams can avoid costly rework by matching the supplier's sieve report and quality documents to the original engineering design. The following items make a useful buying checklist:
- Effective size and uniformity coefficient: request a sieve analysis for each media grade.
- Particle-size distribution: check oversize and fines rather than relying only on a nominal size.
- Media cleanliness: request washing and impurity details appropriate to the water application.
- Specific gravity, bulk density and durability: particularly important for anthracite and backwash behaviour.
- Bed quantities: calculate ordered volume and mass from design dimensions and grade-specific bulk density; allow for handling losses as approved.
- Packing, delivery and batch identification: verify each grade's bag or jumbo-bag label and supporting test report.
- Standards and intended water use: obtain evidence of compliance when the project specification or potable-water rules require it.

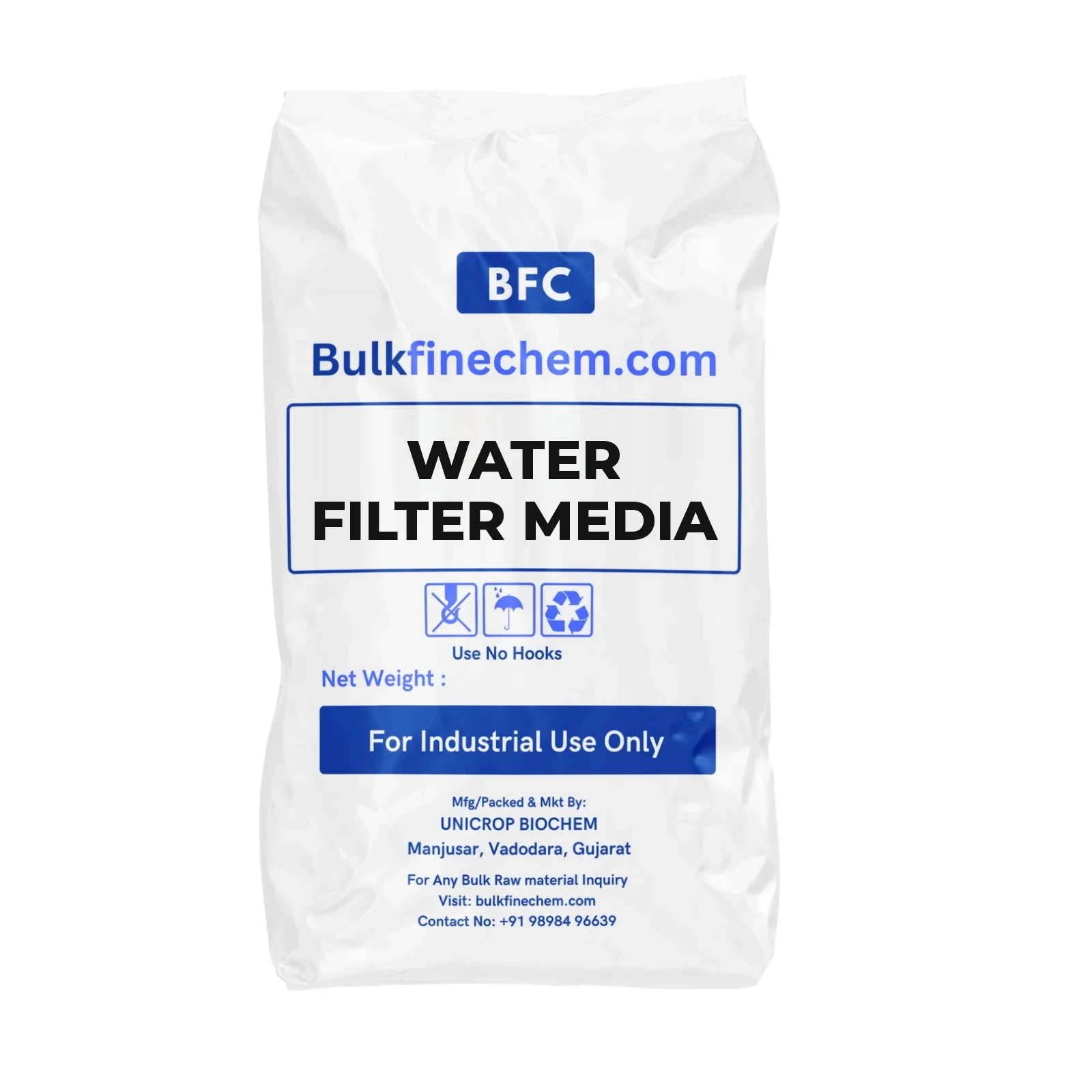

BulkFineChem's product listing for water filter media—sand, gravel and anthracite describes graded silica sand with an indicative effective-size range of 0.45–1.2 mm, anthracite at approximately 0.8–1.6 mm, and support gravel grades from 2–25 mm. These are catalogue examples, not recommended universal design values. The relevant engineer must specify the correct media for the site.
Bulk Water Filter Media Supply in India
BulkFineChem lists washed and graded filter media for pressure and gravity filters, including silica sand, support gravel, anthracite and manganese sand. The product page describes 50 kg bags or 1 MT jumbo bags, a 1 MT minimum order quantity, and sieve analysis or test reports with consignments. Confirm current availability, packing and documentation before purchase.
For a more accurate quote, send the filter vessel drawings or dimensions, approved layer schedule, design flow, intended water use, quality specifications, media quantities, delivery destination and commissioning requirements. Request the matching grade-by-grade test certificates before dispatch. If you are evaluating a new vendor, also consult our supplier selection checklist.
Handling, Installation and Maintenance Precautions
Dry silica-containing material can produce respirable dust. Use suitable dust control, respiratory protection and site procedures when moving or charging bags. Keep different size grades segregated and avoid cross-contamination before installation.
New filter media commonly require commissioning steps such as controlled filling, washing and backwashing according to the filter manufacturer's instructions. During service, monitor pressure drop, effluent quality and cleaning performance. Replace media according to measured condition and approved maintenance procedures, not a universal replacement interval.
Frequently Asked Questions
1. Is anthracite better than silica sand for every filter?
No. Anthracite can offer useful characteristics in a properly engineered dual-media bed, but the best configuration depends on water quality, process conditions and filter design.
2. Why is anthracite commonly placed above sand?
Its lower density and selected coarser grading can support a stable upper layer above denser sand when the bed and backwash are engineered correctly.
3. Can I add anthracite to an existing sand filter?
Only after an engineering review of the vessel, layer depths, underdrain, backwash capacity and operating conditions. Adding material without reviewing freeboard and cleaning performance can cause problems.
4. Are filter sand and construction sand interchangeable?
No. Water-treatment media require controlled grading and cleanliness to meet design and water-quality requirements. Ordinary construction sand does not establish these characteristics.
5. Is support gravel always required?
Not universally. Many systems use graded support gravel, but the appropriate arrangement depends on the filter's underdrain and approved design.
6. What documents should I request with bulk filter media?
Request the grade-specific sieve analysis or test report, relevant cleanliness and density specifications, batch or consignment identification, and any compliance documentation required by the project.
Conclusion: Buy to the Filter Design, Not Only the Tonnage
The right choice in sand vs anthracite filter media starts with treatment requirements and the engineering design. Sand remains a proven filtration material; anthracite can form a useful upper layer in a properly designed dual-media bed. The best purchasing decision is based on verified grading, clean media, hydraulic suitability and complete consignment documentation.
Need graded media for a new filter or bed replacement? Review BulkFineChem's water filter media listing and enquire with your vessel dimensions, media schedule, quantity and delivery location.
